CONTROL & MONITORING

FUNDAMIX® Control and
Monitoring Solutions

Precise control and validation to ensure reliable,
reproducible mixing.

Speak to an Expert See in Action

Choose the Right Control and
Monitoring Setup for Your Process

our products

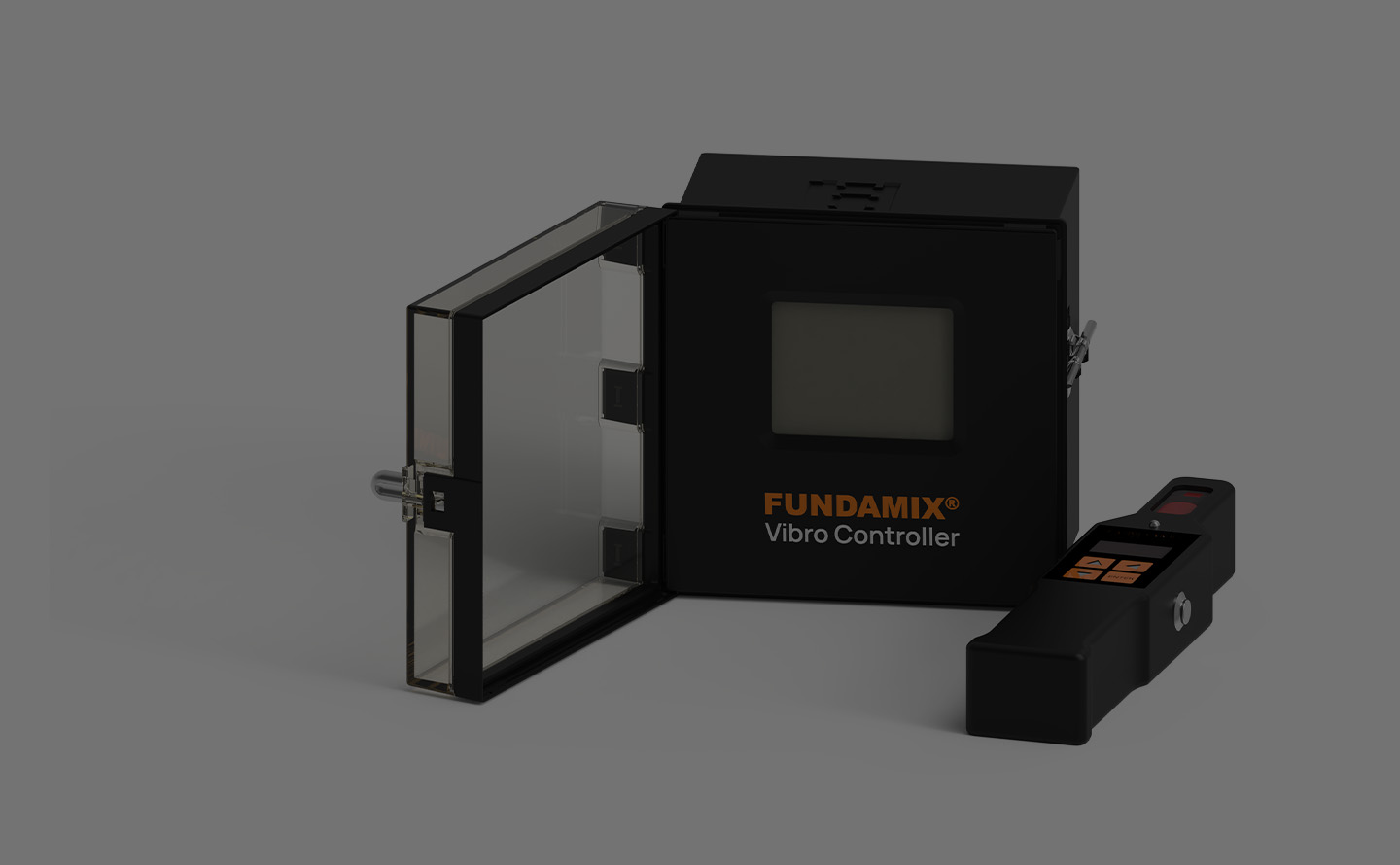

FUNDAMIX® systems offer flexible options to meet different process requirements. Whether you need continuous automated control or periodic validation of oscillation performance, our Vibro-Controller and Vibro-Monitor solutions help ensure consistent, compliant, and optimized mixing operations.

Vibro-Controller Discover

Vibro-Monitor Discover

Vibro-Controller

Precise Control for Reliable,
Reproducible Mixing

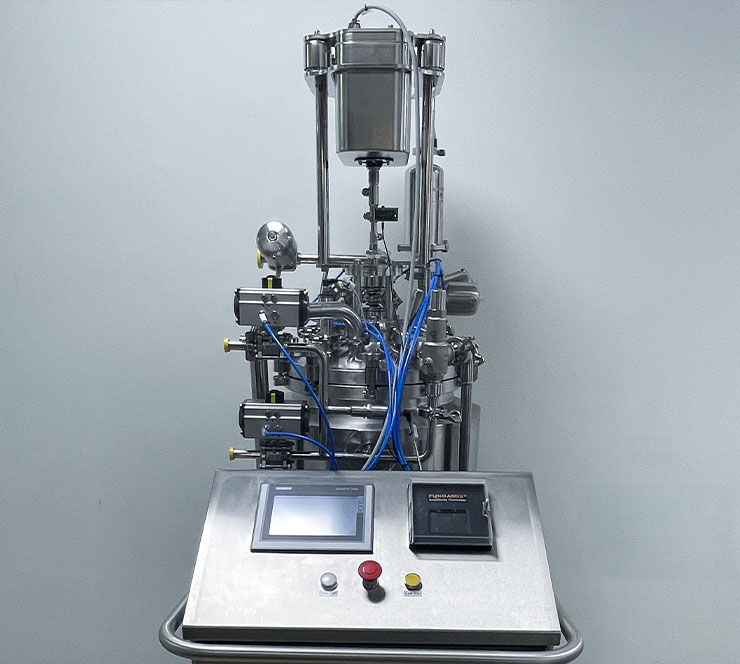

The Vibro-Controller range is the intelligent drive system behind the FUNDAMIX® Vibro-mixer. It allows precise adjustment and control of oscillation frequency and amplitude to match your specific process needs. Whether operating manually or integrated into an external PLC or DCS system, the Vibro-Controller ensures consistent mixing performance, energy efficiency, and full process traceability.

Vibro-Controller VC-201

Details

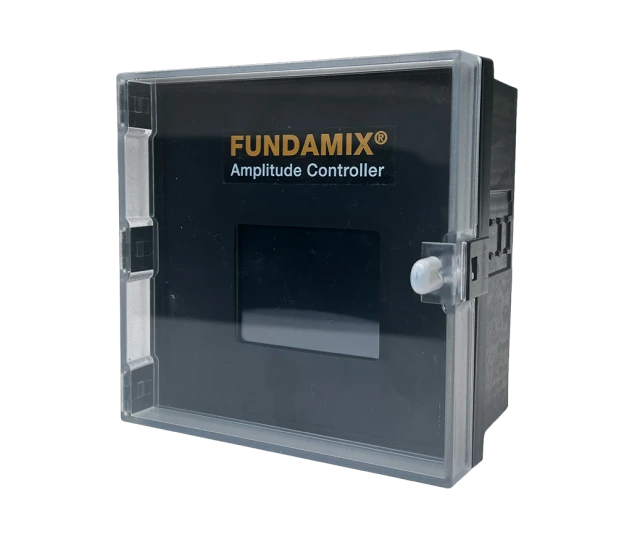

The VC-201 is DrM’s dedicated control unit for FUNDAMIX® Vibro-Mixers, offering precise adjustment of frequency and amplitude to match your process needs. It supports both manual operation and integration into external control systems such as PLC or DCS. Compact and easy to install, the VC-201 ensures consistent, reliable mixing performance across a wide range of applications.

Technical specifications

Model

VC-201 (Interface Only)

Compact, panel-mounted LCD interface designed for standalone control
cabinet or seamless integration into larger PLC or DCS system.

Mains Voltage

24VDC

Mains Frequency

Output Voltage Regulation

No (Interface Only), VFD supplied seperately

Amplitude Control

Control Systems

Basic

Closed-loop Capability

Frequency Adjustment

Resonance Frequency Tuning

PLC Connectivity

Amplitude Deviation Alarm

Sensor Detection

Remote Enable

Built-in PID

Display

3” TFT

Protection Class

IP65

External Amplitude Setpoint

% or mm, 4-20mA

Output Current Limitation

Yes (selectable)

Mounting

Panel Mounted

Conformity

CE, EMC, RoHS

Alarm Relay

Yes, 24VDC

Automated Control

Details

FUNDAMIX® controllers are designed to be integrated into higher level systems to support stable, automated mixing across a range of process conditions.

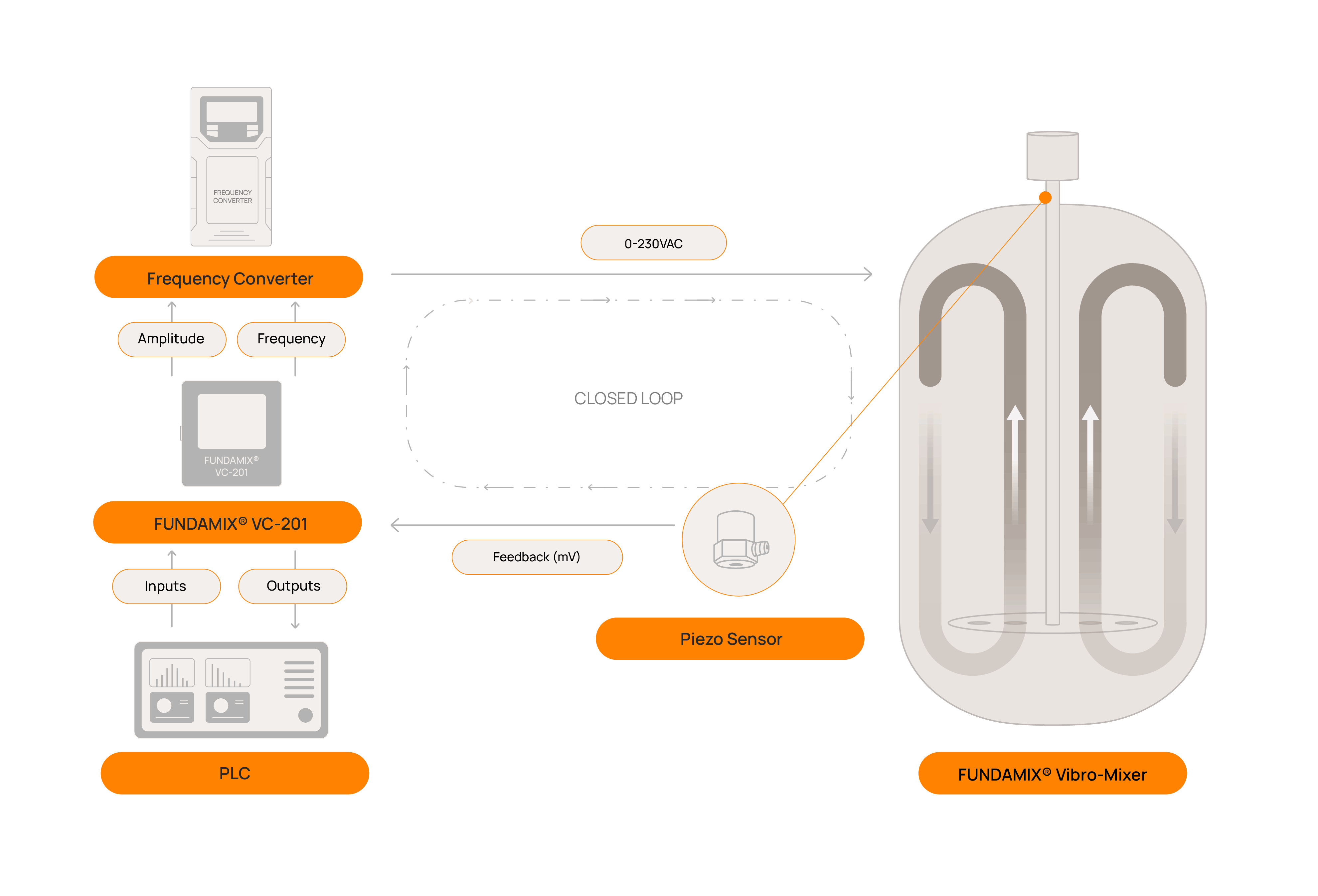

Closed-loop system

The VC-201 is designed to operate as part of a closed-loop control system, continuously regulating the mixing amplitude based on real-time feedback. A sensor measures the actual oscillation of the mixing plate, and the controller adjusts output to maintain the setpoint, even as process conditions change. This ensures consistent, reproducible mixing performance across batches. The system can operate independently or be integrated with external PLC or DCS systems for fully automated control and data monitoring.

Vibro-Monitor

Accurate Validation for Reliable
Mixing Performance

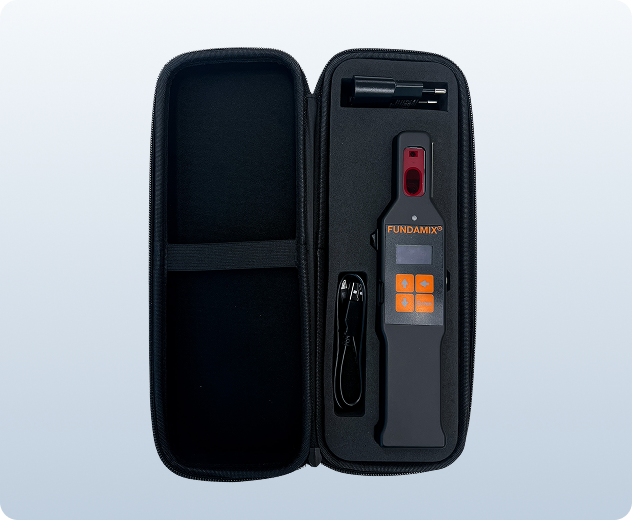

The Vibro-Monitor is a handheld, laser-based device designed to measure and verify the oscillation amplitude and frequency of the FUNDAMIX® Vibro-Mixer in real time. It provides fast, precise, and non-contact validation without the need for fixed installation or calibration. Ideal for quality control, troubleshooting, and GMP-compliant processes, the Vibro-Monitor ensures that your mixing parameters are consistently maintained across different systems and production environments.

Reliable Amplitude Monitoring for Your FUNDAMIX® System

Details

The Vibro-Monitor provides a practical and reliable solution for amplitude verification across a wide range of mixing environments. With a focus on simplicity, portability, and precision, it helps ensure your FUNDAMIX® system consistently meets process specifications. Explore the current monitoring option available today.

Technical specifications

Model

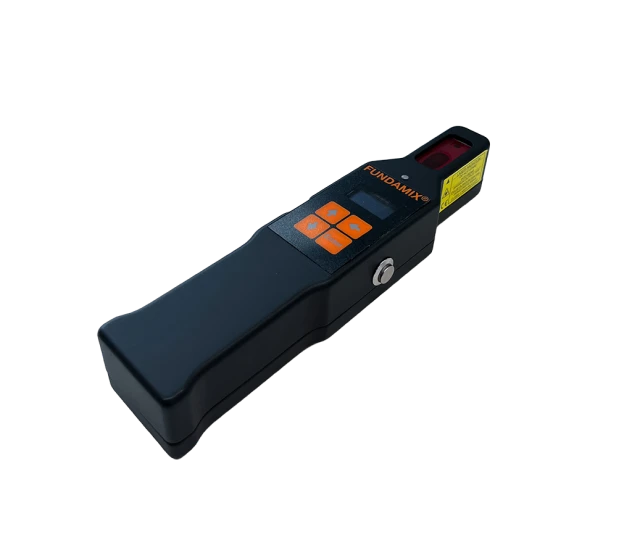

VM-101

Compact, handheld laser device for accurately measuring and recording the amplitude and frequency of FUNDAMIX® Vibro-Mixer.

Laser

Red semiconductor laser, Class 2.
Max. output: 1mW
Emission Peak: 655nm

Power Source

Rechargable 3.7V Li-Ion Battery

Output Voltage Regulation

No (Interface Only), VFD supplied seperately

Measurement Logging

OLED display with membrane keypad

Measurement Range

40 to 60mm from oscillating horizontal surface

Display / Keypad

OLED display with membrane keypad

Conformity

CE, EMC and ROHS

Explore More Mixing Solutions

Explore the full FUNDAMIX® offering, from our core FUNDAMIX® Vibro-Mixer to complete packaged mixing systems with tanks, piping, and automation, all designed for efficient, reliable mixing.
