Mixing with Oscillation, Not Rotation
The FUNDAMIX® a highly versatile and efficient vortex-free mixing solution for a broad spectrum of applications and operating conditions.
Mixing. Powered by Oscillation
FUNDAMIX® Vibro-Mixer uses an electromagnetic drive to oscillate a mixing plate and generate axial flow, without any rotating parts or mechanical seals. The flow direction can be inverted by adjusting the plate orientation, enabling precise control over mixing characteristics and intensity. This versatile, low-maintenance and highly-reliability design ensures gentle but effective agitation across a wide range of applications.
Mixing Versatility
With versatile mixing parameters, the FUNDAMIX® Vibro-Mixer is perfectly suited for both gentle, shear-sensitive applications but also more demanding processes requiring vigorous mixing.
No Rotating Parts
The absence of rotating components enables low-maintenance operation, eliminates vortex formation, and minimizes contamination risks, ensuring cleaner and more reliable mixing performance.
Energy Efficient
Electromagnetic drive uses significantly less power than conventional rotary mixing systems, while maintaining consistent mixing performance.
Mixing, Tailored to Your Process

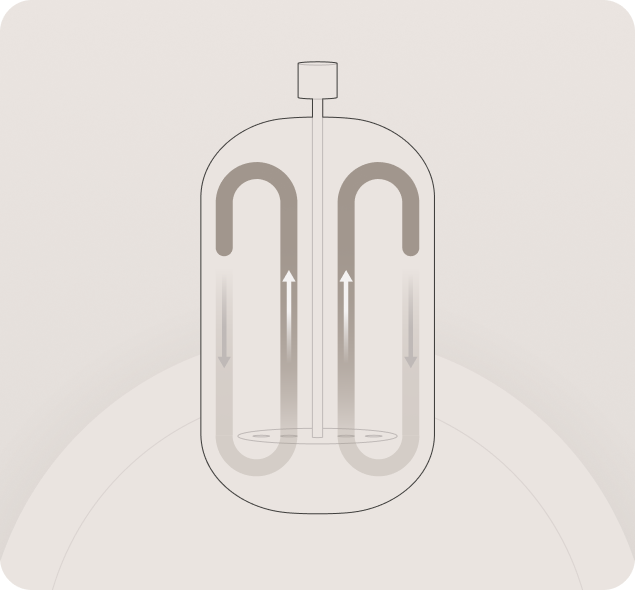

Best for: Processes requiring rapid and efficient mixing, such as liquid–liquid blending and formulations involving liquids with light solids.
Best for: Processes with fast-settling solids or where foam prevention is critical.

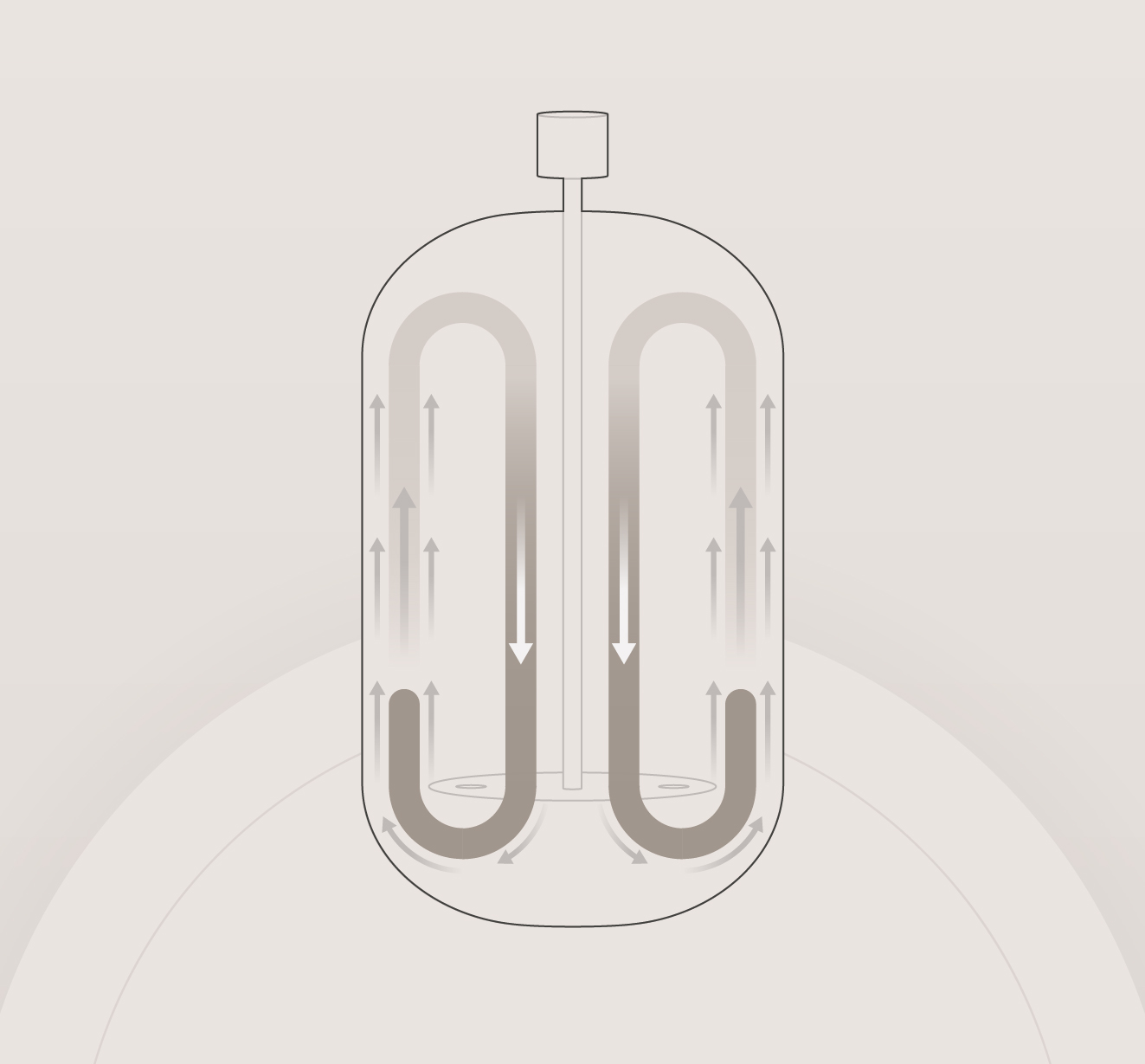

Mixing and sparging combined for effective aeration and fermentation. Best for: Processes requiring precise gas distribution such as aeration, fermentation, or gas sparging.
Mixing with Oscillation,
Not Rotation
FUNDAMIX® VIBRO-MIXER
FUNDAMIX® highly versatile and efficient vortex-free mixing solution for a broad spectrum of applications and operating conditions.
Efficient Yet Gentle Mixing
Achieves uniform distribution while protecting delicate materials with low-shear, vortex-free operation.
Energy-Efficient Performance
Utilizes an oscillating principle to minimize power consumption while maintaining effective mixing.
Easy Installation & Low Maintenance
Designed without rotating seals or lubricants and eliminates the need for baffles, reducing upkeep and operational costs.
Adaptable to Various Applications
Adaptable flow direction and mixing intensity ensure compatibility with a wide range of applications and operating conditions.
Scalable Mixing Solutions for Any Process
FUNDAMIX® is built on a simple principle: delivering the same efficient, vibration-based mixing at any scale. From lab environments to full-scale production, FUNDAMIX® models cover mixing volumes from just 1 liter to 12,000 liters without compromising performance, product quality, or energy efficiency.
Choose the model that fits your process all built on the same vibration-based mixing technology.
FM-1
Compact & PreciseIdeal for small tanks, pilot systems, and lab-scale mixing.
Vessel Ø Range:
70-400mm
Vessel Capacity Range:
0.5-20L (0.13 – 5.28 gal)
FM-2
Most PopularBest fit for most standard industrial mixing applications.
Vessel Ø Range:
400-600mm
Vessel Capacity Range:
10-200L (2.6–52.8 gal)
FM-3 (+)
High EfficiencyOptimized for larger tanks without compromising mixing efficiency.
Vessel Ø Range:
FM-3: 600-900mm
FM-3+: 900-1,200mm
Vessel Capacity Range:
FM-3: 50 – 1,000L (13.2 – 264.2 gal)
FM-3+: 300 – 2,000L (79.3 – 528.3 gal)
FM-4 (+)
Premium PowerDesigned for industrial-scale mixing with demanding process requirements.
Vessel Ø Range:
FM-4: 1,200-1,600mm
FM-4+: 1,400-2,000mm
Vessel Capacity Range:
FM-4: 1,000 – 10,000L (264 – 2,642 gal)
FM-4+: 6,000 – 12,000L (1,585 – 3,170 gal)
Fully Enclosed & Maintenance-Friendly Design
FUNDAMIX® is designed for efficient, safe, and reliable operation with no rotating parts and minimal maintenance requirements.
Product contacting parts available in industrial or hygienic grade finishing
Can be operated under vacuum or pressure (-1 to 10 bar g)
Cleaning in place (CIP) and Sterilization in place (SIP) compatible
Top mounted, easy installation without the need for baffles
Low plate positioning for minimal heel volume
Mixing device is customized to the application and vessel requirements
Easy maintenance due to the absence of rotating parts
Product contacting parts are AISI316L (1.4404/1.4435)
Sealing membrane EPDM with bonded PTFE foil (product contacting side)
O-rings, MVQ or EPDM
Designed and manufactured as per GMP regulations and following the EHEGD guidelines
FDA / USP Class VI compliant materials available where necessary
CE Marked
Drive unit IP65 protection class
ISO9001 certified manufacturing
Alternative product contacting materials or coatings available upon request
Membranes and seals available in a variety of materials to accommodate chemical compatibility requirements
Custom made plastic mixing device
Various shaft coupling solutions available to accommodate installation requirements
Low profile suspension solutions for height restricted installations
ATEX version available, Zones 1 & 2 only

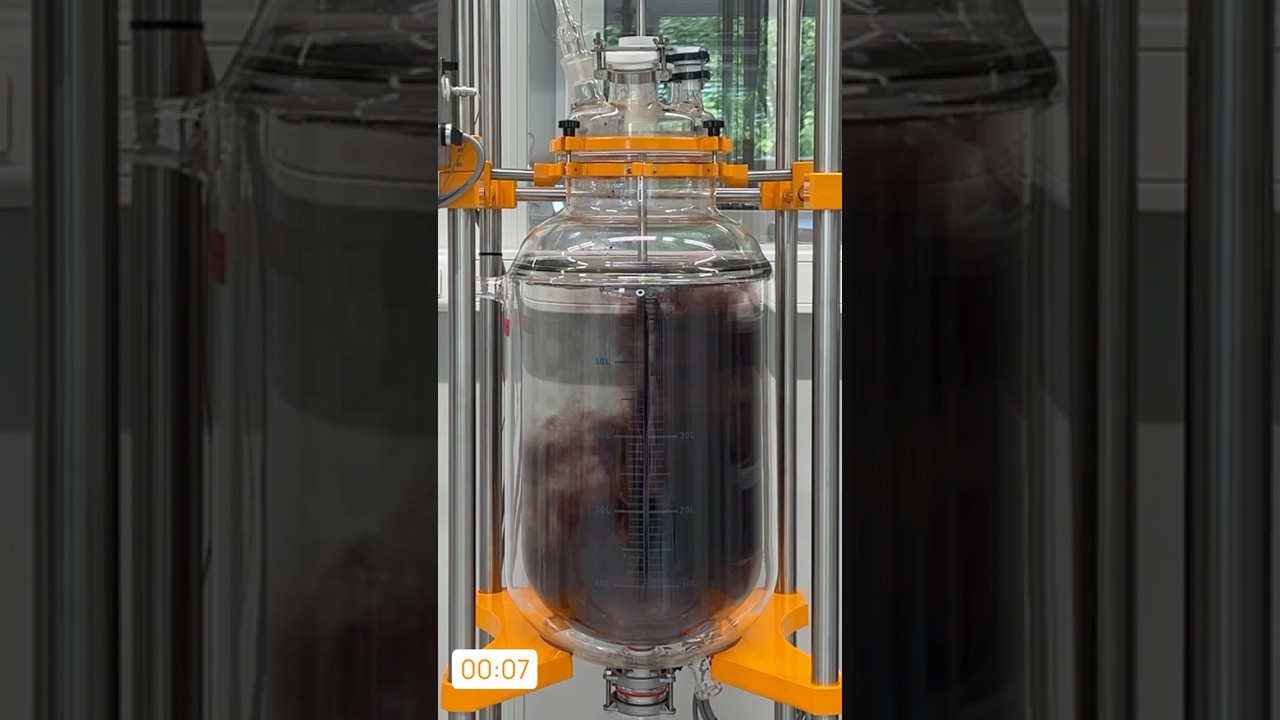

How It Works
A visual explanation of how FUNDAMIX® uses vibration to achieve efficient mixing without rotating parts.
Fork & Good
"With FUNDAMIX®, we’ve been able to keep sensitive cell aggregates in suspension while maintaining over 95% viability in perfusion processes. This performance remains consistent even at high cell densities, where rheological properties of the culture change significantly."

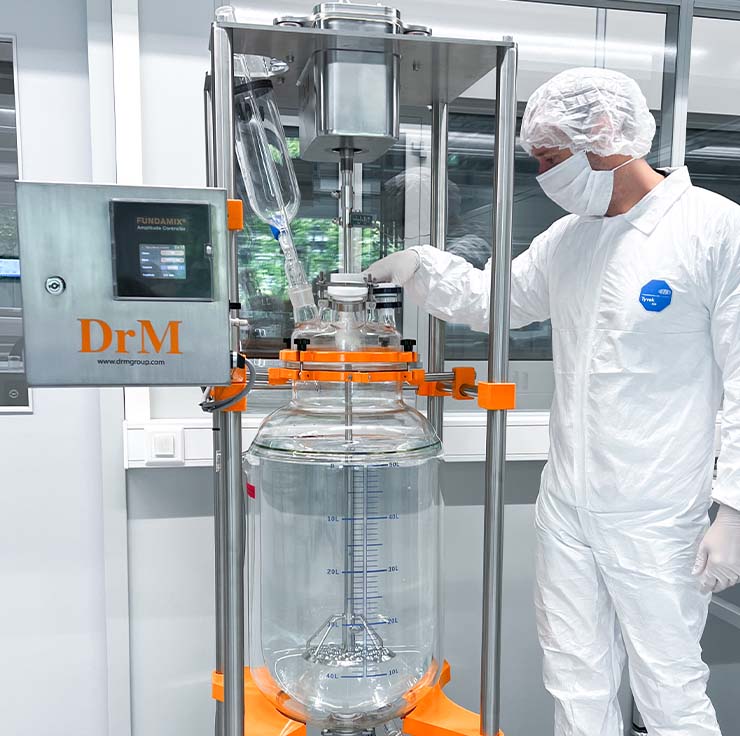

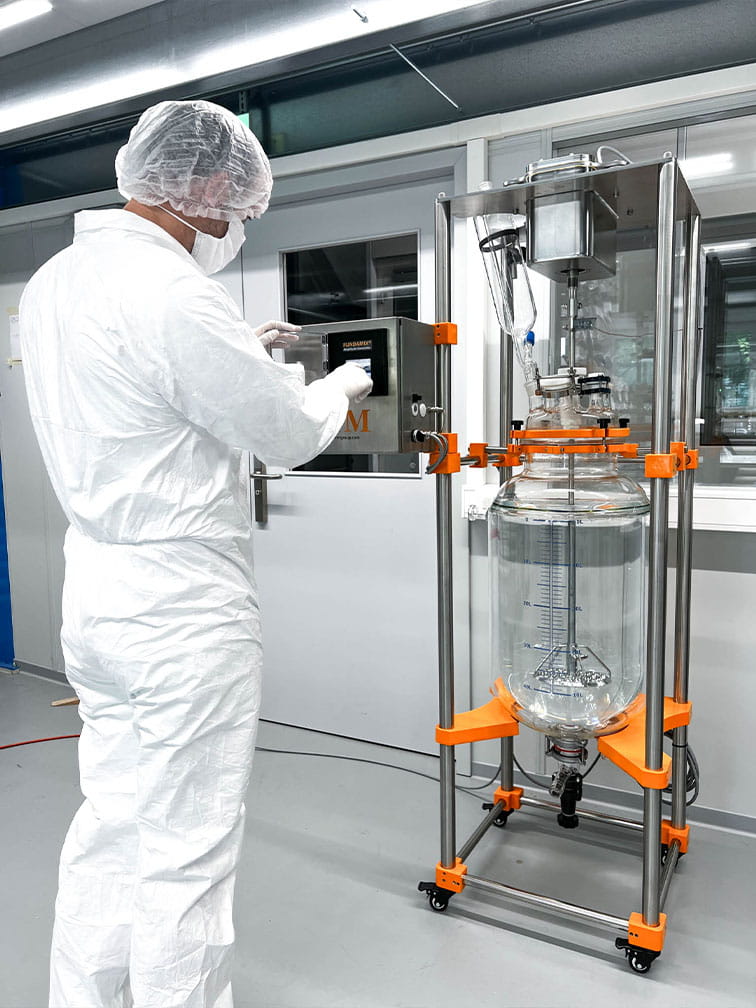

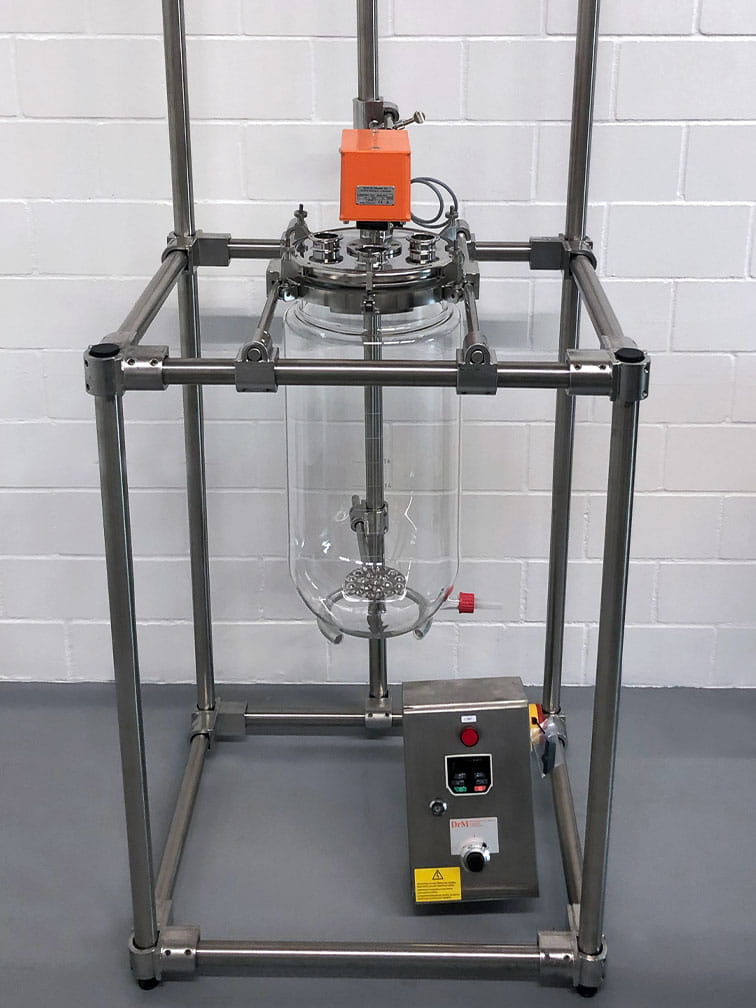

Lab-Scale Mixing
Equipment for
Testing & Scale-Up
Before scaling up to full production, lab-scale testing allows you to validate your process, optimize parameters, and ensure reliable mixing performance.
DrM offers compact FUNDAMIX® test units, available for purchase or rental, to help simulate real process conditions in a controlled lab environment.
- Ideal for mixing trials, process development, or R&D
- Fully enclosed, hygienic design
- Easy-to-use, compact footprint
- Adjustable mixing parameters
- Available for rental or purchase
Explore More Mixing Solutions
Discover how our mixing technology extends beyond the core unit. Learn more about our fully engineered packaged systems and integrated control and monitoring options.

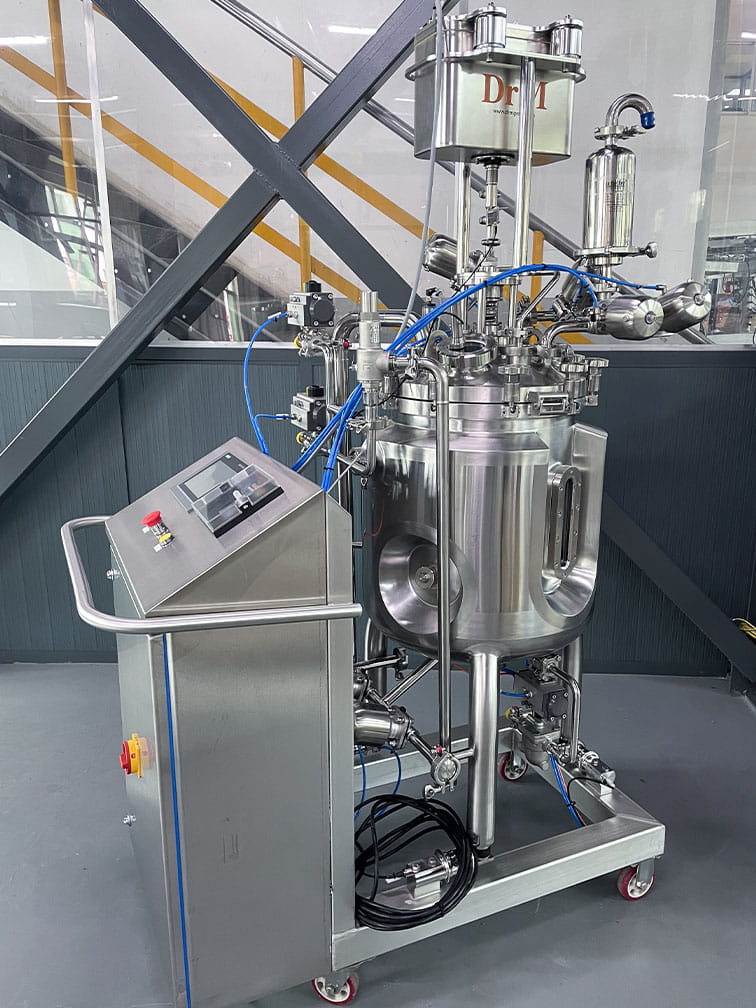

Packaged Units
Explore fully assembled systems that combine FUNDAMIX® mixers with tanks, piping, automation, and instrumentation for seamless integration.
Discover
Learn how the Vibro-Controller and Vibro-Monitor provide full control over mixing parameters, validation, and system performance.
DiscoverResources & Downloads
Download detailed brochures, technical resources, and guidance documents to learn more about our FUNDAMIX® Vibro-Mixers and how they can support your process. Whether you're exploring lab-scale mixing, full-scale production, or looking to prepare a project inquiry, everything you need is here.
