A New Era in Single-Use
Filtration

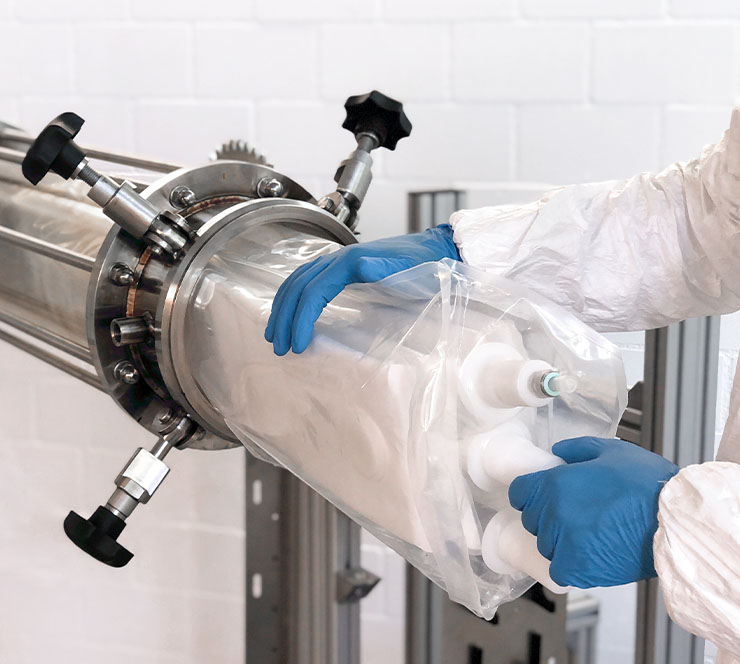

Introducing our FUNDALOOP® filter, the first single-use, multi-cycle filtration system for safe, scalable, and efficient solid-liquid separation.
Designed to Perform Better Cycle After Cycle
FUNDALOOP® combines closed system operation with multi cycle efficiency to deliver reliable, high yield filtration. Its smart design reduces waste, protects product quality, and adapts easily as your process scales.
Self-Cleaning Backflush Keeps Performance High
The FUNDALOOP® regenerates its filter media after every cycle using a patented backflush step, preventing cloth fouling, extending bag life, and reducing plastic waste.
High Flow Rates Without Compromise
Thin filter media combined with filter aids (like diatomaceous earth) maintain low resistance and high flow rates while achieving high filtrate clarity.
Easy Scale-Up Without Changing Equipment
Scale your process from small to commercial volumes using the same FUNDALOOP® system, simply increase the number of cycles to handle larger batch sizes.
Multi-Cycle Filtration
How It Works

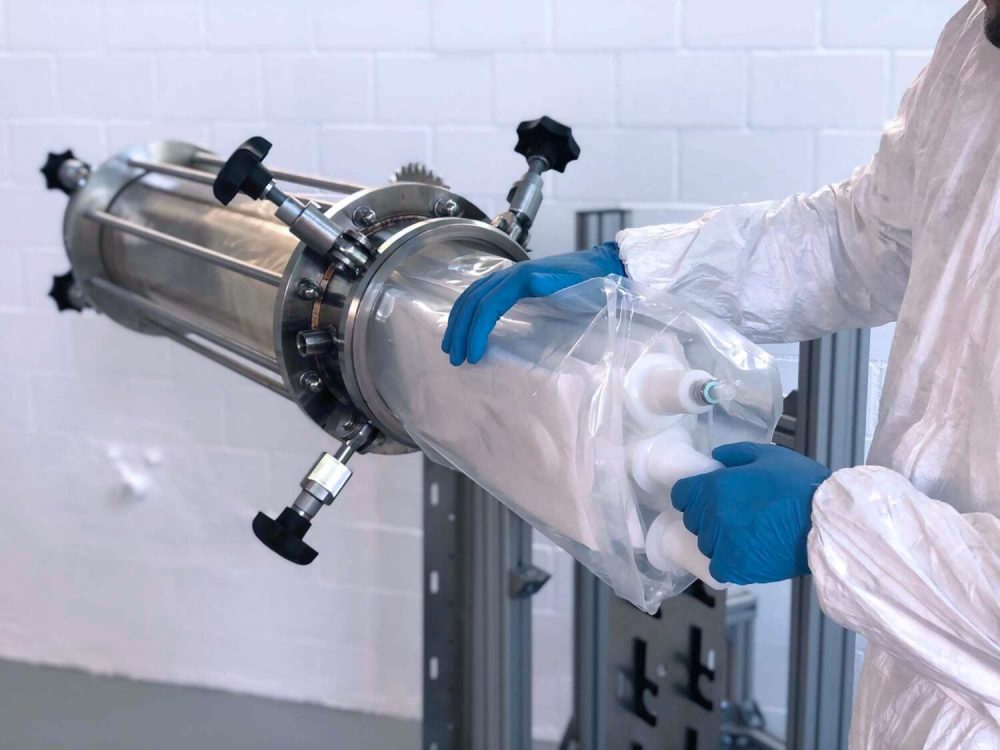

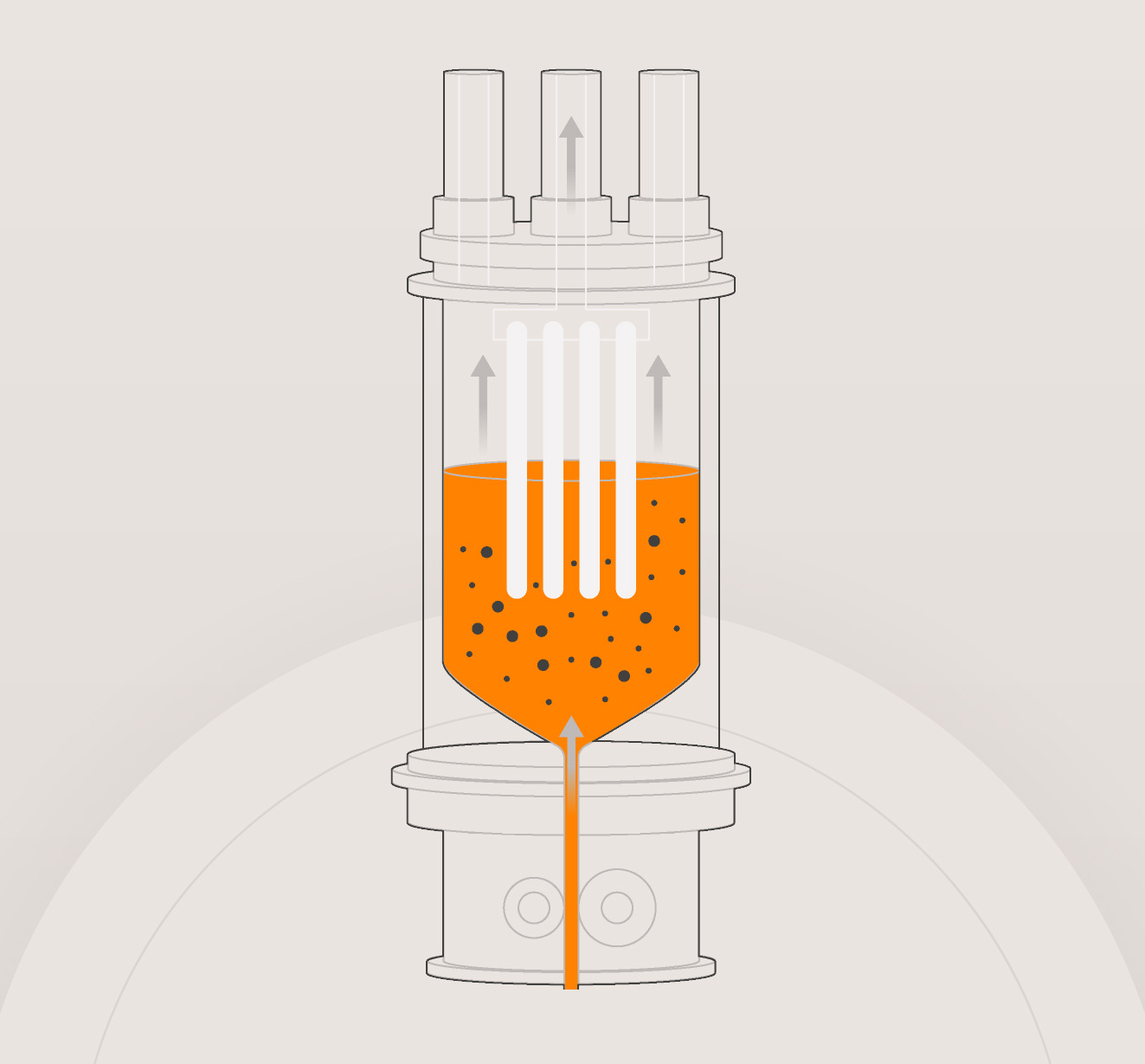

Cell culture fluid is pumped into the bag and filtered. Solids form a porous filter cake on the elements, which is covered with the filter cloth, while the clarified liquid passes through.

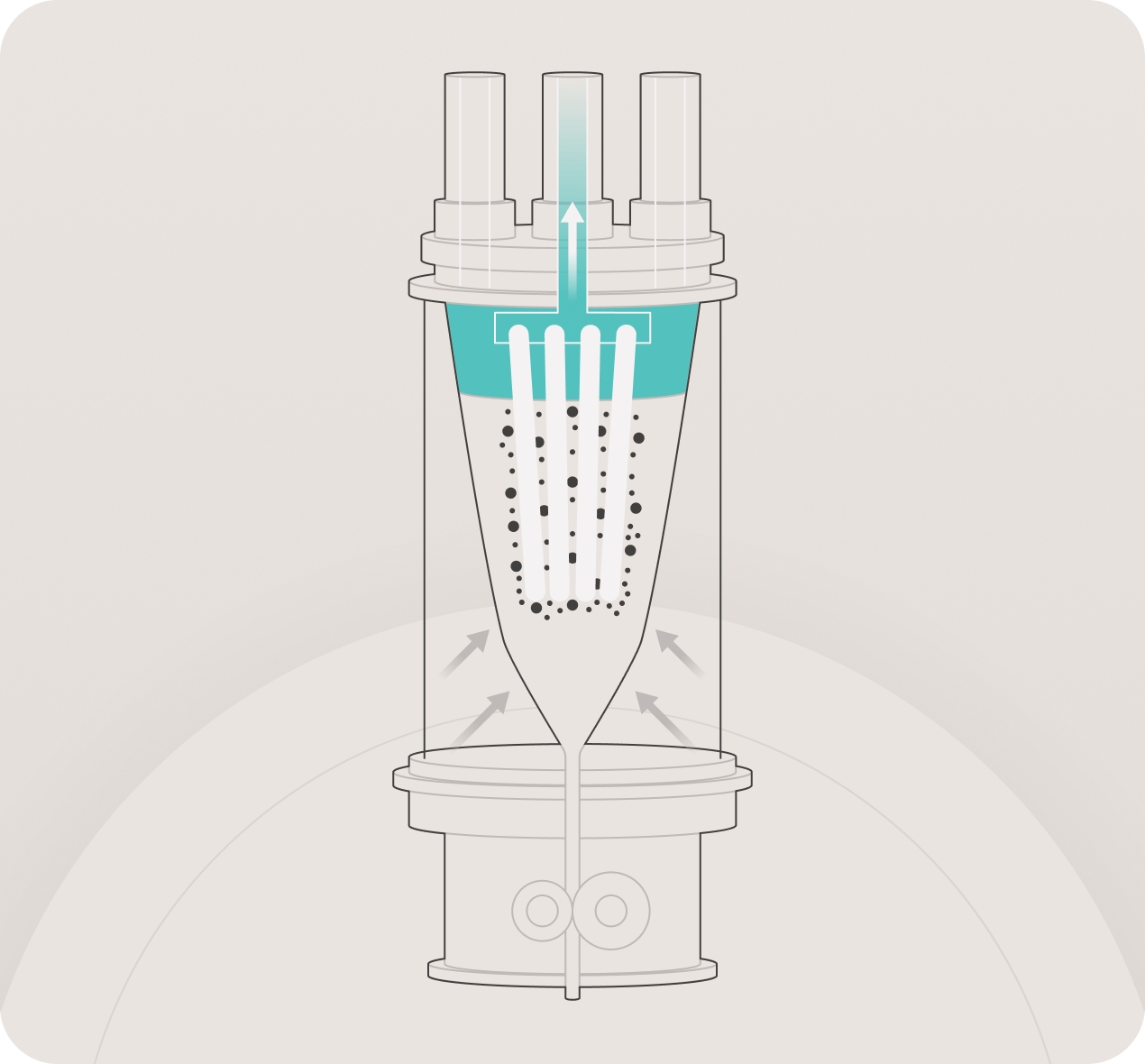

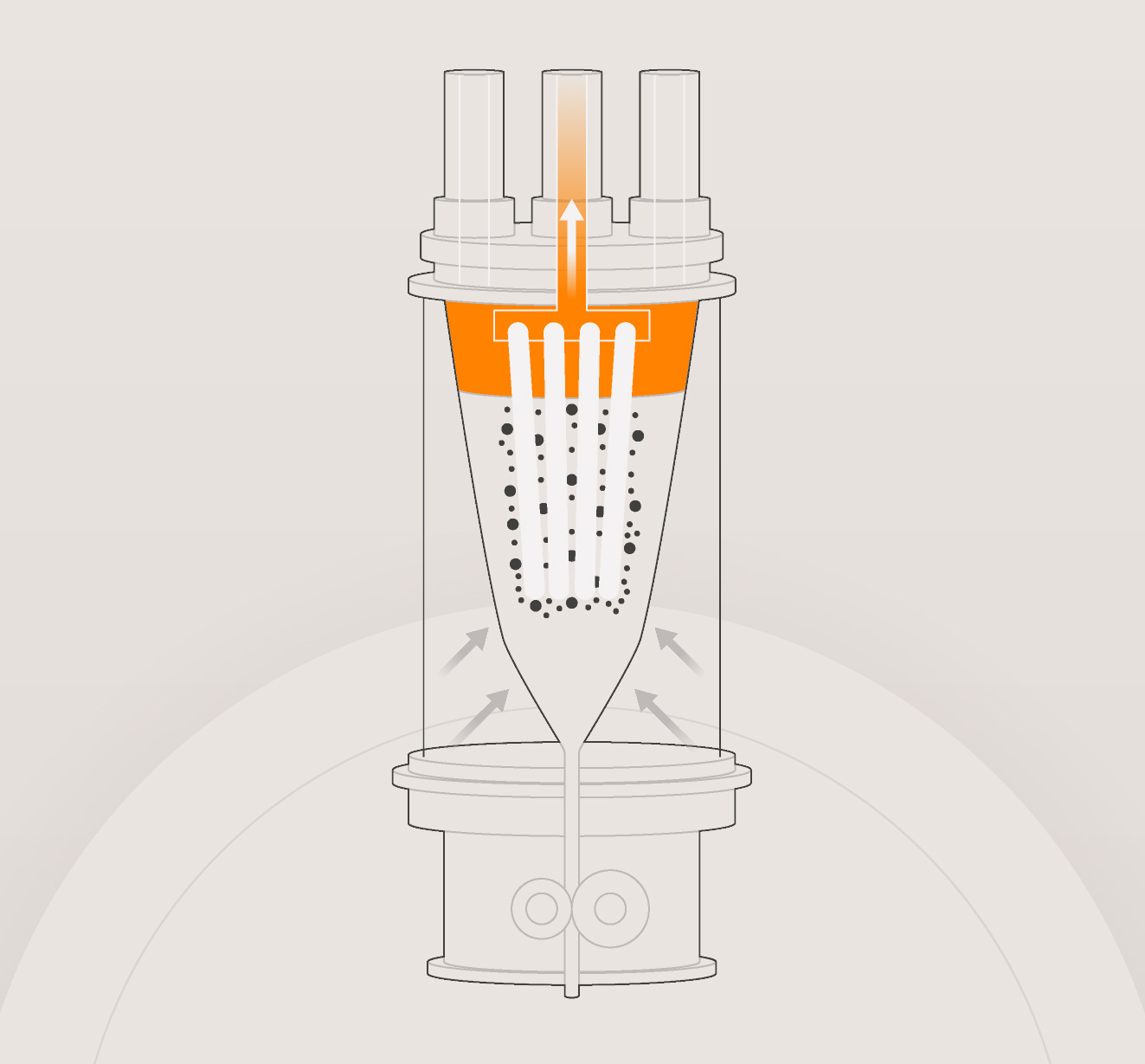

Once filtration is complete, pressurized gas compresses the bag, pushing remaining liquid (heel volume) through the filter for maximum product recovery. An optional cake wash can be applied.

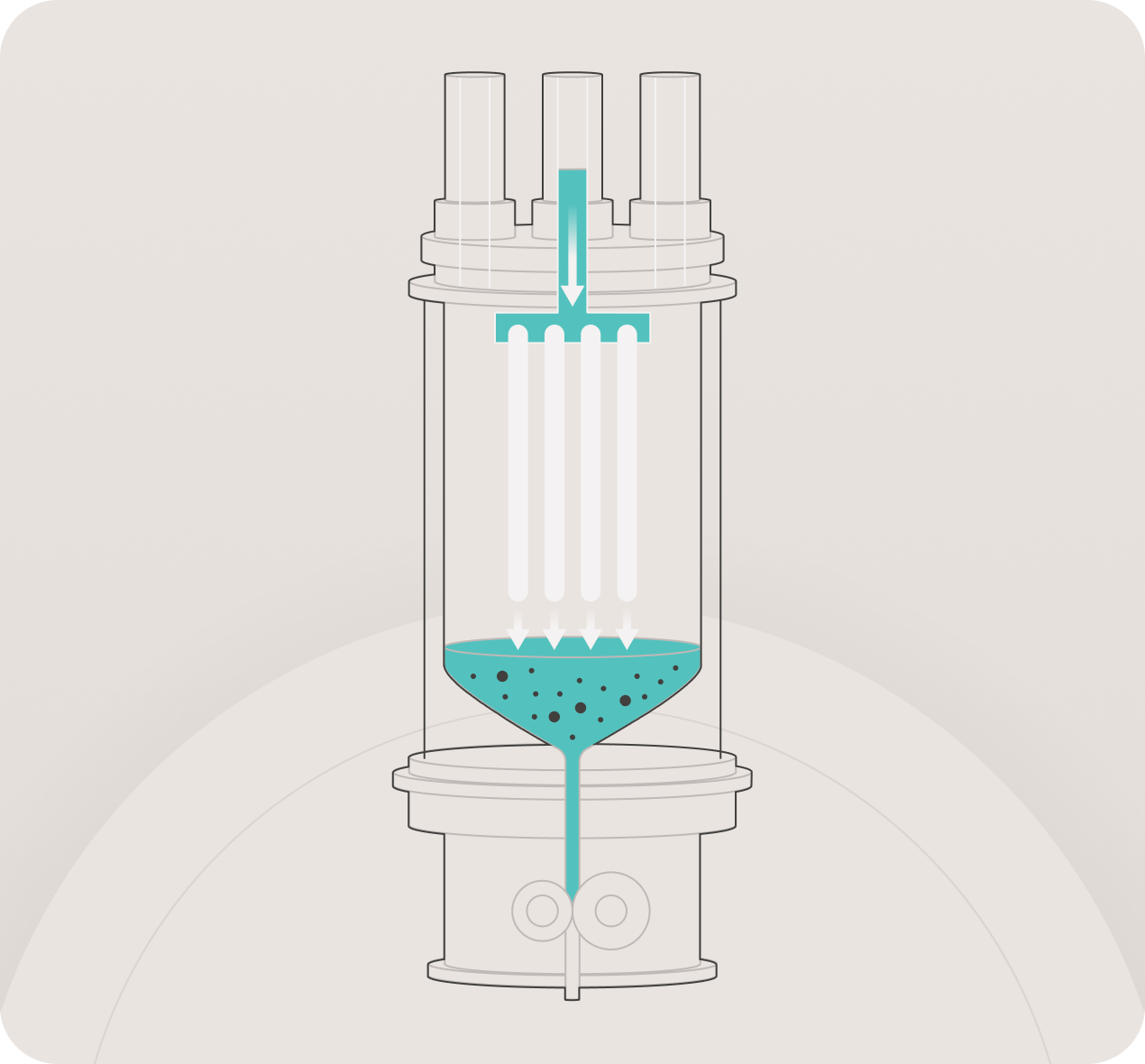

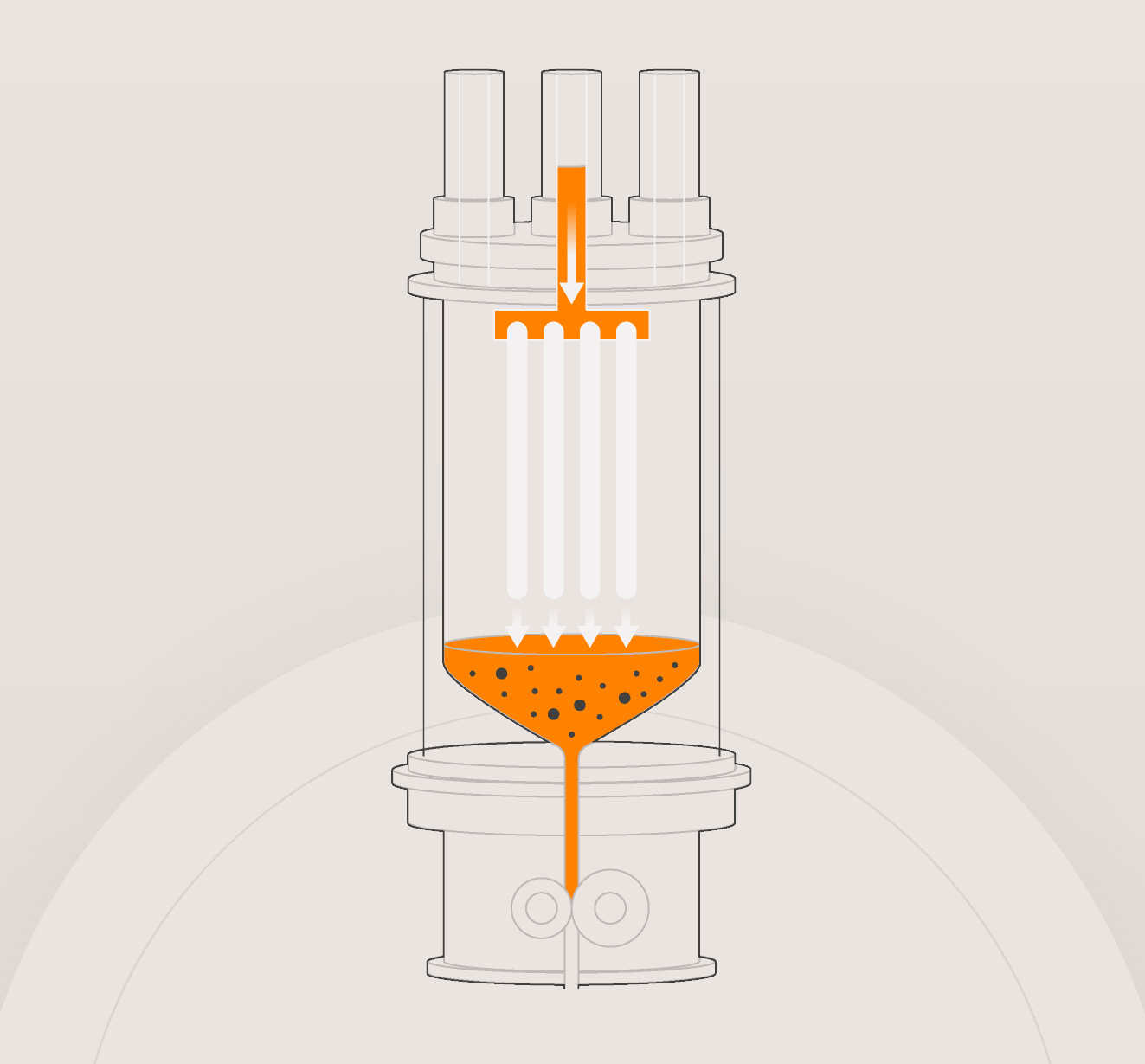

Sterile liquid (e.g., buffer or WFI) is flushed in reverse through the filter elements. This expels the solids from the filter candles and therefore regenerates the filter cloth.

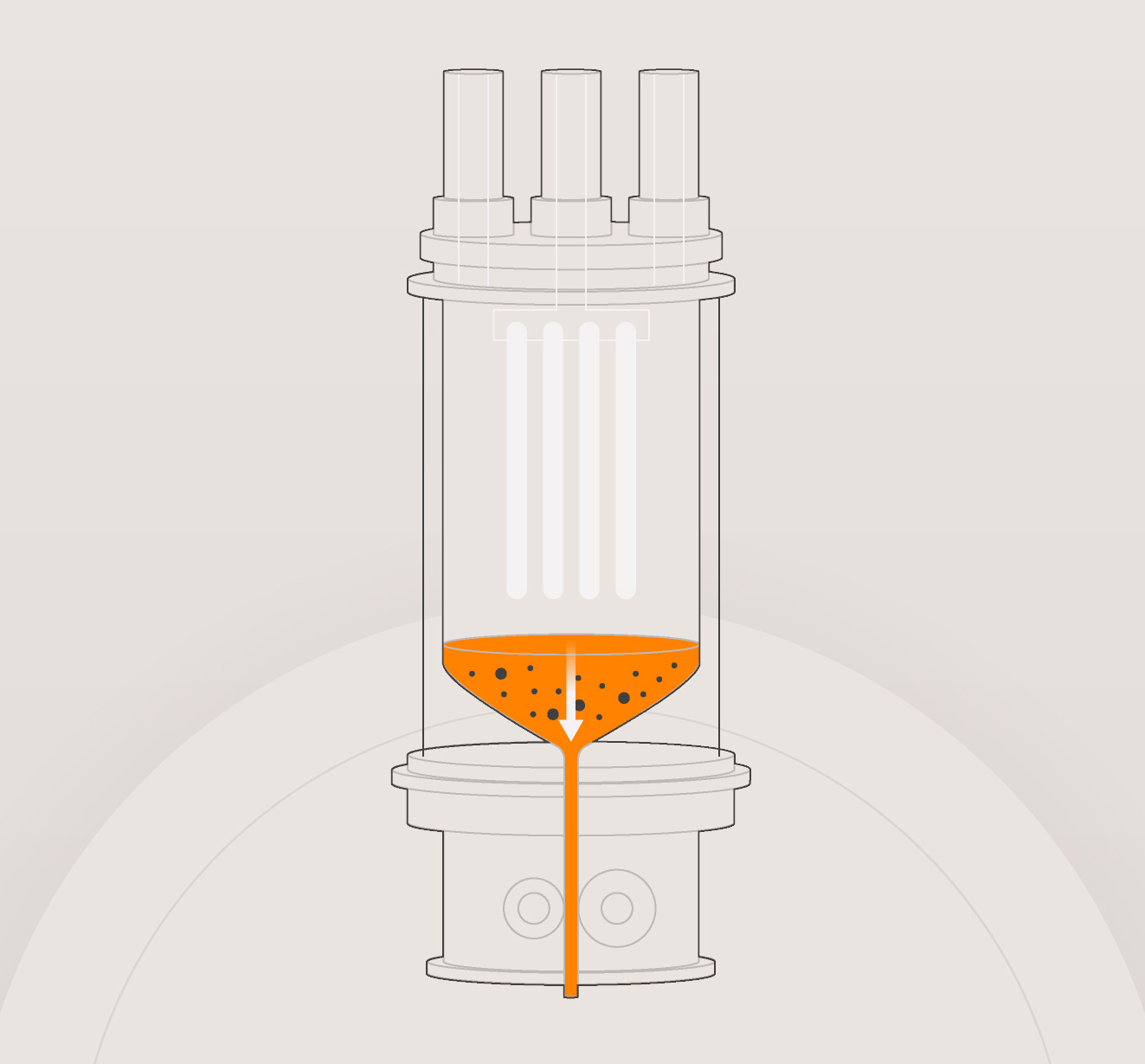

The discharge valve opens. Solids and residual wash liquids are removed from the bag. The system is now ready for the next filtration cycle.
A Smarter Alternative to Centrifuges & Depth Filters
Traditional harvest and clarification methods rely on centrifuges or multi-stage depth filtration setups, both with well-known challenges: fouling, high waste, low flexibility, and inefficient scalability. The FUNDALOOP® filter replaces these outdated systems with a fully enclosed, single-use solution that’s more efficient in speed, space, and scale-up procedure.
Centrifuge
Depth Filter
FUNDALOOP®
Back-Flush / Regeneration
Multi-cycle Use
Waste Generation
High
High
Low
Scalability
Difficult
Linear but costly
Linear and cost efficient
Flow Rates
Limited
Significantly drops as filter fouls
High & stable as it evades cloth fouling
Turnkey
Modular Design, Scalable Benefits
FUNDALOOP® is available in several standard configurations, each offering process consistency, efficiency, and cleanability. The following sections outline its key features and technical specifications.
Primary and secondary filtration in a single step
High flow rate and filtrate clarity
Sustainable, reduced amount of plastic waste
Turnkey system, no preflush needed
Up to 60% reduced clean room footprint
Fully automated, CFR 21 part 11 compliant software
Less product contact and leachables/extractables
CapEx and OpEx savings
Hardware

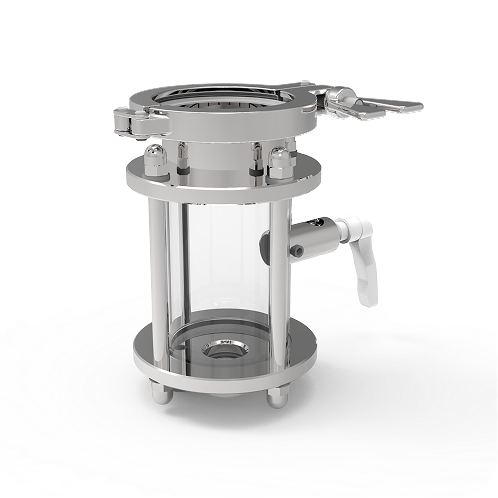

FL 50 Skid

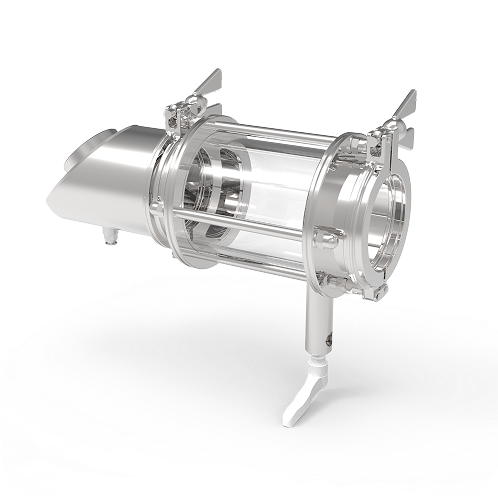

FL 200 Skid

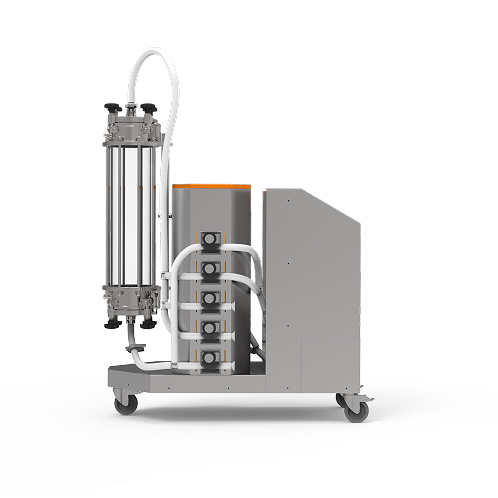

FL 3000 Skid

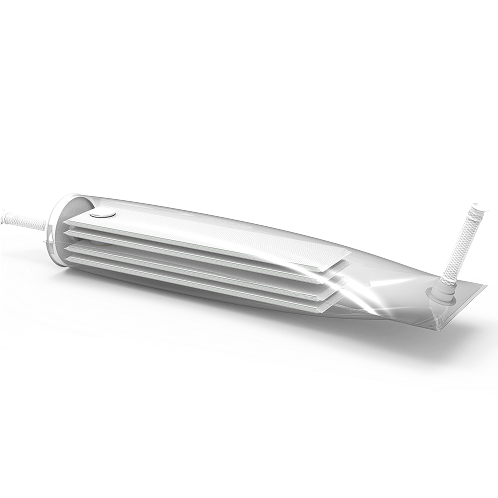

SU consumable
FL 50 skid
FL 200 skid
FL 3000 Skid
Batch size (L)
≤ 100
≤ 400
≤ 5000
Filter area (m²)
0.006
0.018
0.44 / 0.88
Number of elements
1
1
2/4
Dimensions (mm)
-
-
-
Materials of construction
PE, PP, EPDM
PE, PP, EPDM
PE, PP, EPDM
Pressure rating (barg)
3
3
3

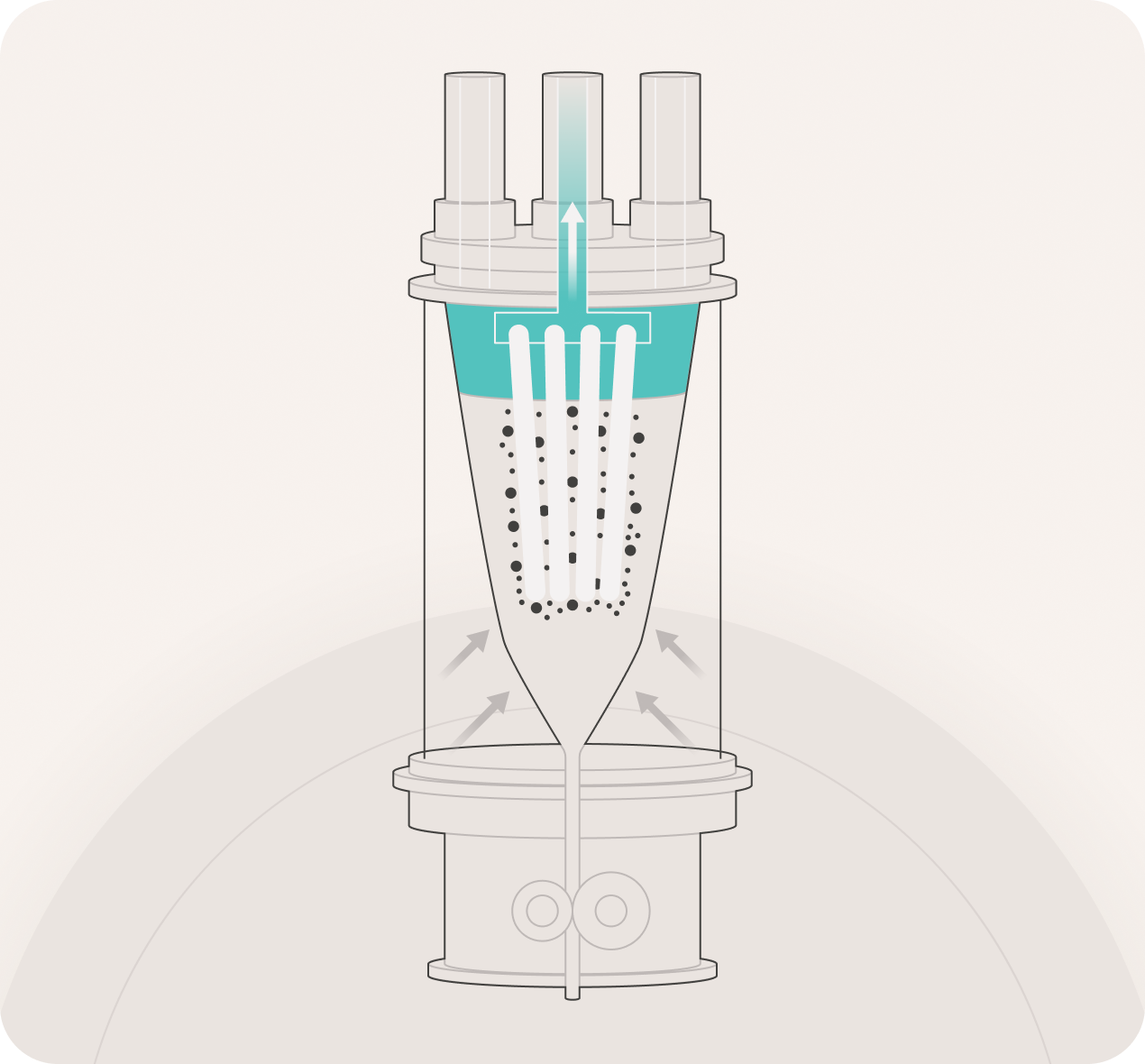

Heel volume filtration is an integrated process that enables FUNDALOOP® to recover the residual liquid (the “heel”) remaining at the bottom of the vessel after filtration. Instead of discarding this heel or leaving product behind, the system redirects it through a closed-loop spray design to maximize recovery.
How it works:

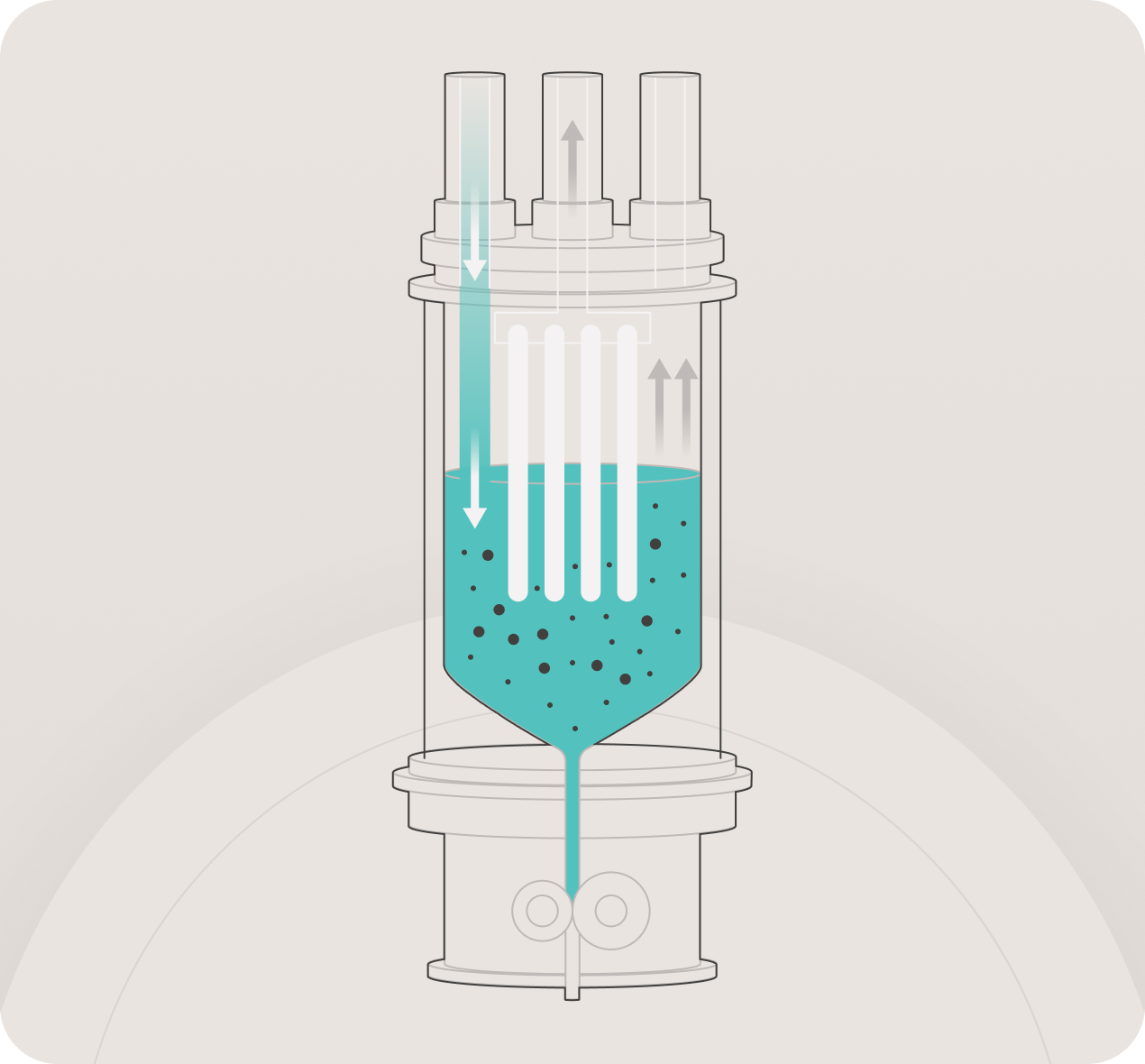

The heel is collected from the vessel’s lowest point and recirculated through a spray nozzle integrated in the filter cover.
A fine mist is evenly distributed over the filter elements, pushing the residual liquid through the existing cake using gas pressure.
This final step enhances product recovery without requiring additional handling or equipment.
This method can also be used to support efficient cake washing. The spray mechanism distributes the wash liquid uniformly, minimizing volume while maintaining high washing performance — an important factor in batch integrity and resource efficiency.
Why it matters:
Improves yield by recovering residual liquid
Minimizes waste and reduces environmental impact
Maintains batch control in a closed single-use system
Enhances cost-efficiency through liquid savings
AGC Biologics
"DrM's FUNDALOOP® was able to filter a lysed E.coli culture at a high flow rate and low turbidity, while also achieving an excellent plasmid DNA yield. Unlike depth filters, the FUNDALOOP® did not clog despite the feed being highly non-uniform. We also appreciated the quick and competent customer service"
Test FUNDALOOP®
in Your Process.
From Lab to
Production Scale

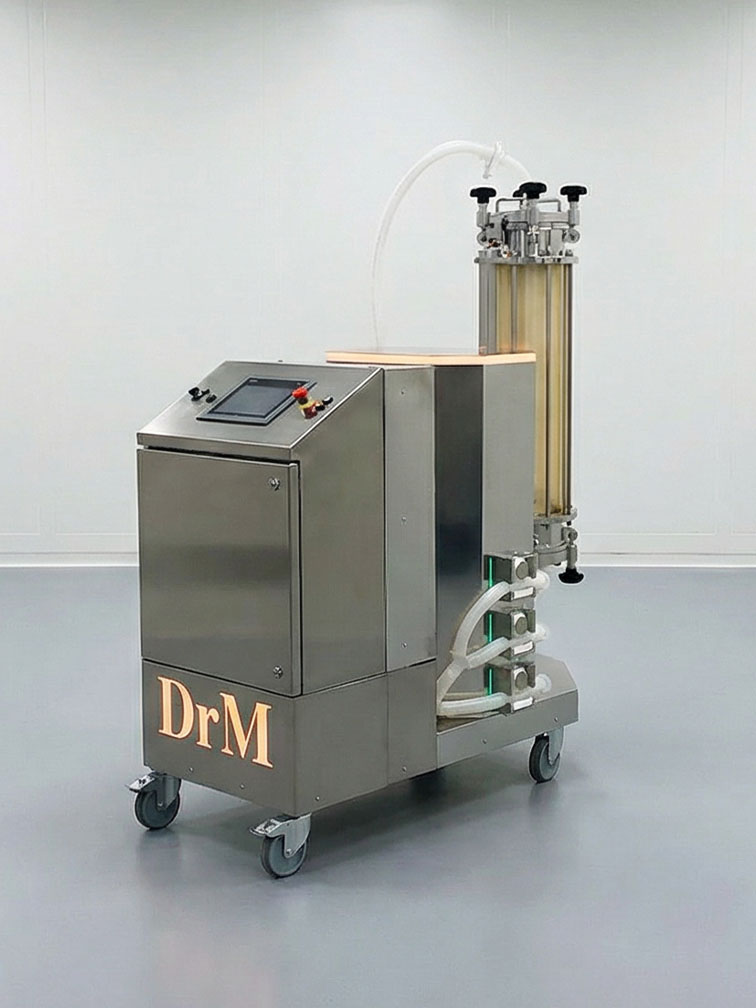

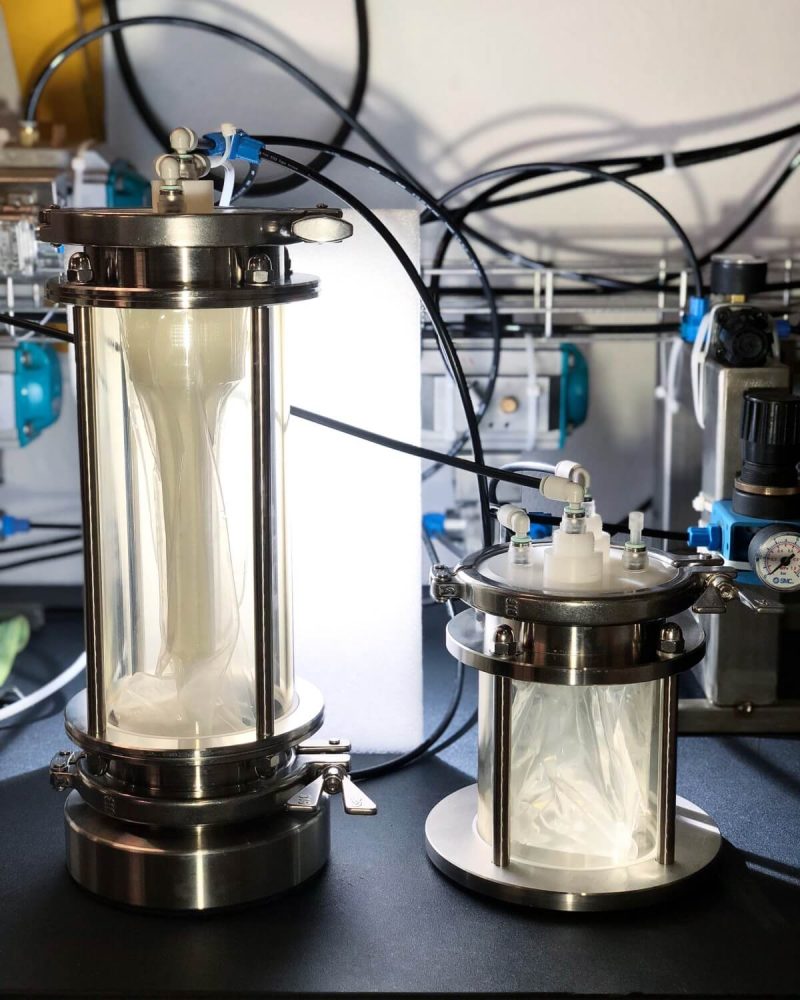

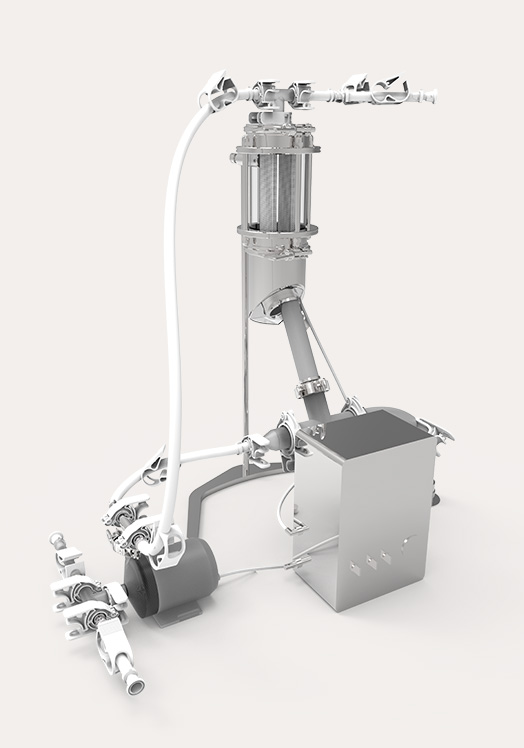

Before investing in a full-scale system, DrM offers lab- and pilot-scale FUNDALOOP® units to test performance in real process conditions.
Evaluate filtration efficiency, product recovery, and cycle parameters, using the same multi-cycle technology applied at production scale.
- Available for rental or purchase
- Identical mixing principle as production units
- Easy setup for lab or pilot environments
- Ideal for trials, R&D, and process development
- Supported by DrM’s technical experts
Explore More Single-Use Solutions
DrM also offers single-use mixing systems and valve technology designed to work seamlessly across upstream and downstream processes.
Resources & Downloads
Download detailed brochures, product overviews, and technical resources to learn more about FUNDAMIX® SU and DrM’s complete single-use mixing solutions. Everything you need to explore, plan, or specify your system is available here.
