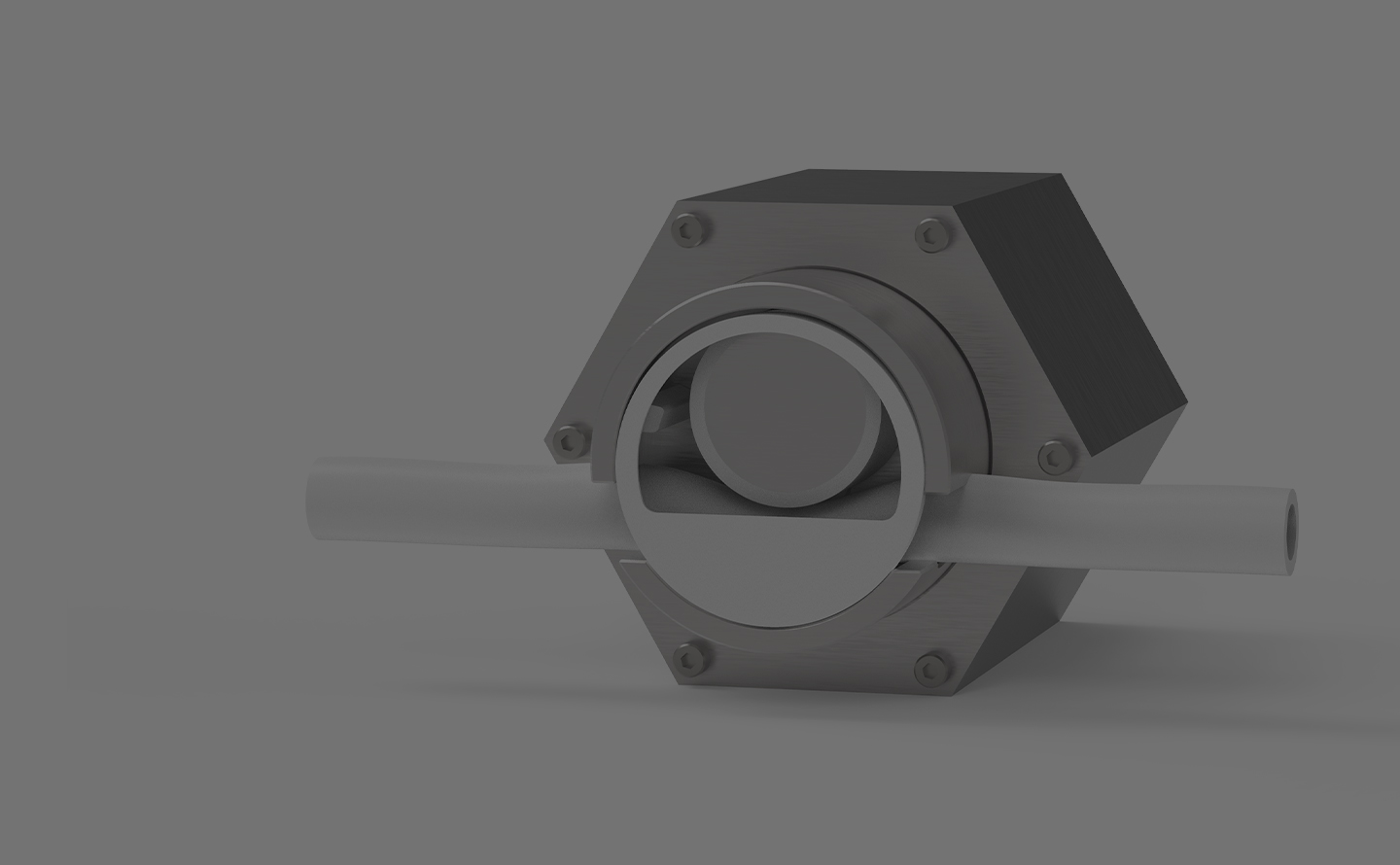

Reliable fluid control in
flexible tubings such as
Single-Use Equipment
DrM’s Single-Use Pinch Valve ensures safe on/off and proportional control, even under pressure, without any
product contact.
Designed for Cleanroom-Ready, Single-Use Integration

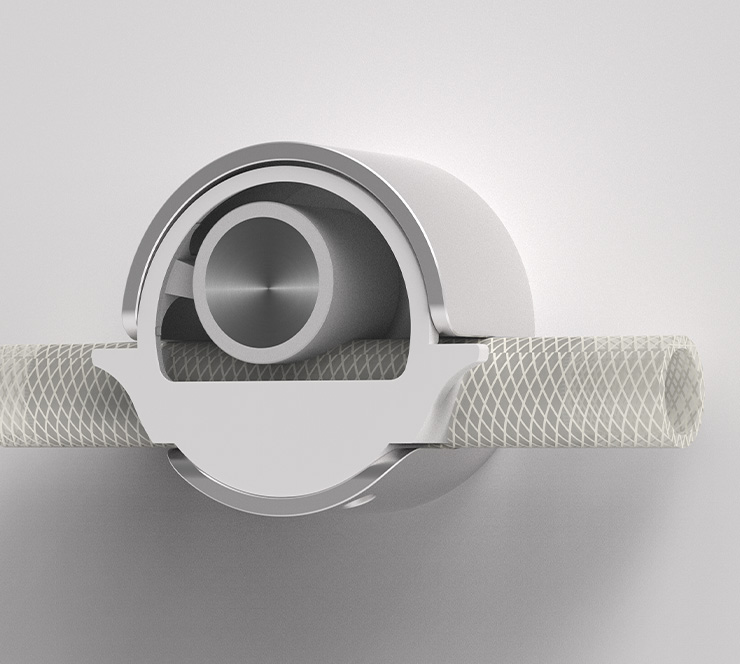

DrM’s Single-Use Pinch Valve offers precise, contact-free fluid control for single-use tubing systems. With a compact, easy-to-install design and cleanroom-ready housing, it integrates seamlessly into biopharmaceutical environments. The valve is engineered for cost-effective operation and repeatable performance across both manual and automated setups. Whether you require basic on/off functionality or proportional adjustment, it delivers safe, sterile control without touching the product.
Non-Invasive Flow Control
Precise on/off or proportional control without any contact with the product. The valve acts externally on the tubing to maintain sterile, contamination-free operation.
Handles Tough Tubing with Ease
Engineered to close securely around reinforced or high-resistance single-use tubing, making it suitable for filtration and other demanding fluid handling applications.
Compact and Easy to Integrate
Compact footprint for easy installation in cabinets, enclosures, or skids. Compatible with PLC or DCS systems for seamless automation and process control.
Engineered for Precision and Process Compatibility
Designed with biopharmaceutical environments in mind, the Single-Use Pinch Valve offers a smart combination of performance, hygiene, and integration flexibility. Explore the key features and technical specifications that support consistent, sterile operation.
Designed for cleanroom use and wash-down environments
Contact-free valve action ensures sterile, hygienic operation
Compatible with a wide range of single-use tubing materials
Easy and secure tubing installation and removal
Compact footprint and lightweight design
Cost-effective alternative to diaphragm or rotary valves
No cleaning or validation required between batches
Suitable for automated or manual operation
Seamless integration into existing skids, cabinets, or panels
Available in normally open or normally closed configurations
Valve

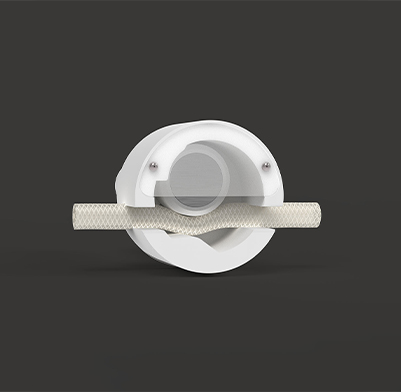

Micro

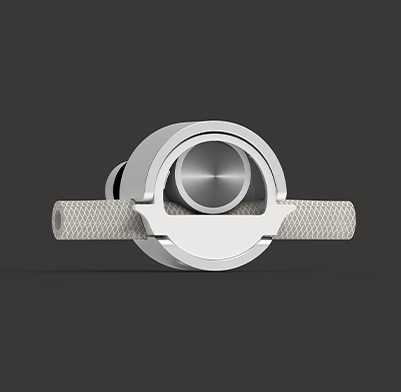

Mini
Uni
Type
Pinch, non-invasive
Pinch, non-invasive
Pinch, non-invasive
Actuation
Remote from PLC, local with switch and via App (iPhone)
Remote from PLC, local with switch and via App (iPhone)
Remote from PLC, local with switch and via App (iPhone)
Number of elements
1
1
2/4
Actuation Time (open and close)
3 sec
3 sec
3 sec
Weight (kg)
0.2
1.1
2.6
Dimensions (L × ø) (mm)
97 x 50
140 x 73
195 x 120
Max. op. Pressure (bar g *1)
5 - 20
5 - 20
5 - 20
Max. op. Temperature (°C)
60
60
60
Hose size (max. ø value)
8.75mm / 5/16''
20mm / 3/4''
35mm / 3/4''
Hose size (suggested range) (suggested range)
3 - 9mm / 1/8'' - 3/8''
35 / 3/4''
35mm / 3/4''
Signal Input (Analog Mode)(mA(Vdc))
4...20 (24)
4...20 (24)
4...20 (24)
Signal Input (ON/OFF Mode)
24Vdc / 0Vdc 0Vdc / 24Vdc
24Vdc / 0Vdc 0Vdc / 24Vdc
24Vdc / 0Vdc 0Vdc / 24Vdc
Non Conformity Alarm (Normal / Non Conformity) (Vdc)
0 / 24
0 / 24
0 / 24
Electrical Connections (Power / Ground Signal Input / Non Conformity Output)(Vdc)
24 / 24 / 24
24 / 24 / 24
24 / 24 / 24
Chemical Resistance
Suited for IPA Cleaning(Cleanroom airlocks)
Suited for IPA Cleaning(Cleanroom airlocks)
Suited for IPA Cleaning(Cleanroom airlocks)
Notes
*1: Max. operating pressure depends on tube size.
*2: Nominal voltage 12V. Valve can operate at 24V by adjusting power
*1: Max. operating pressure depends on tube size.
*2: Nominal voltage 12V. Valve can operate at 24V by adjusting power
*1: Max. operating pressure depends on tube size.
*2: Nominal voltage 12V. Valve can operate at 24V by adjusting power

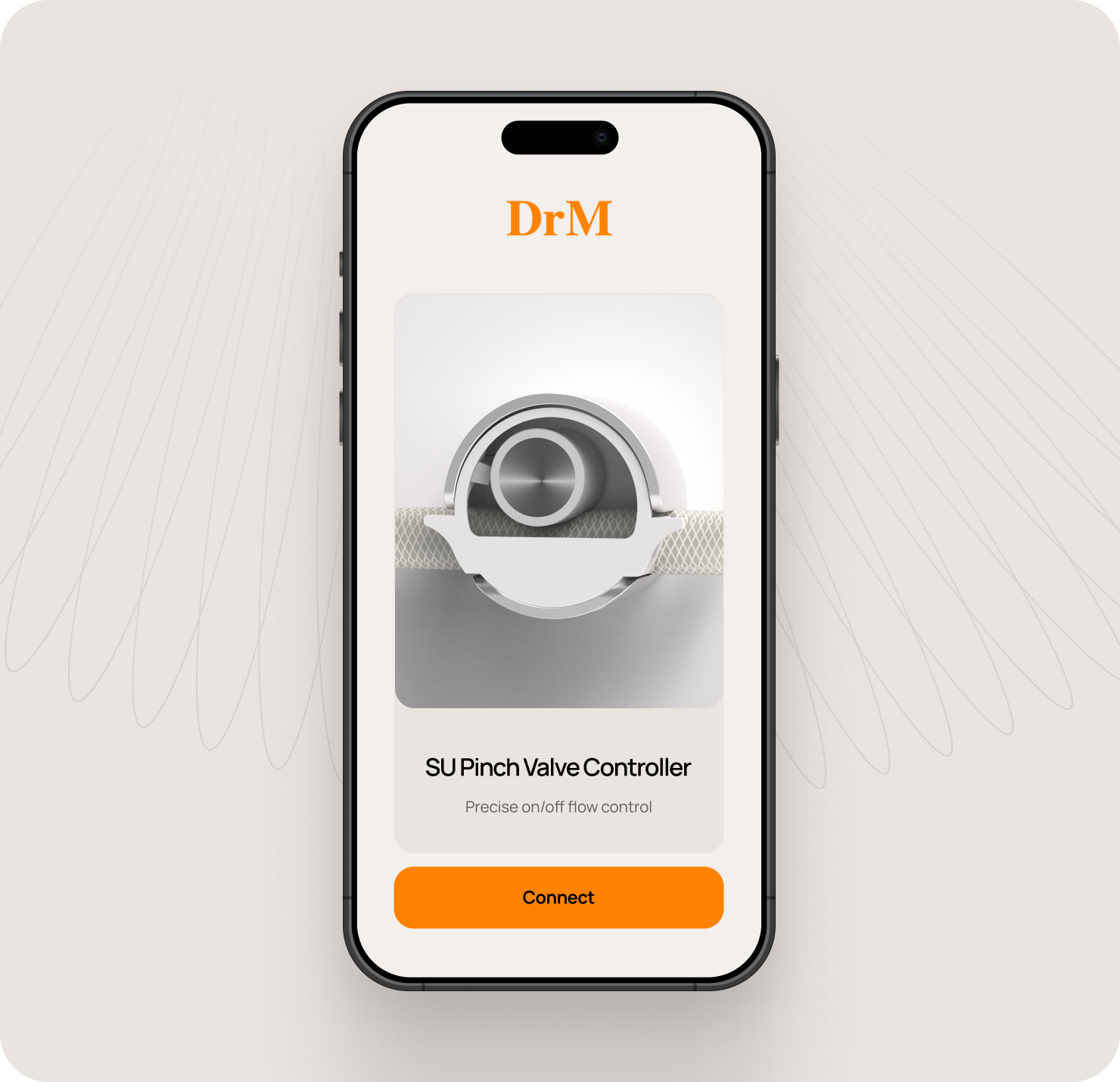

Configure Your Valve
with Ease
Available configuration settings include:
Bluetooth advertising time adjustment for security
On/off or analog operation modes
Motor power and stop force settings
Normally closed or normally open setup
Calibration and reset functions

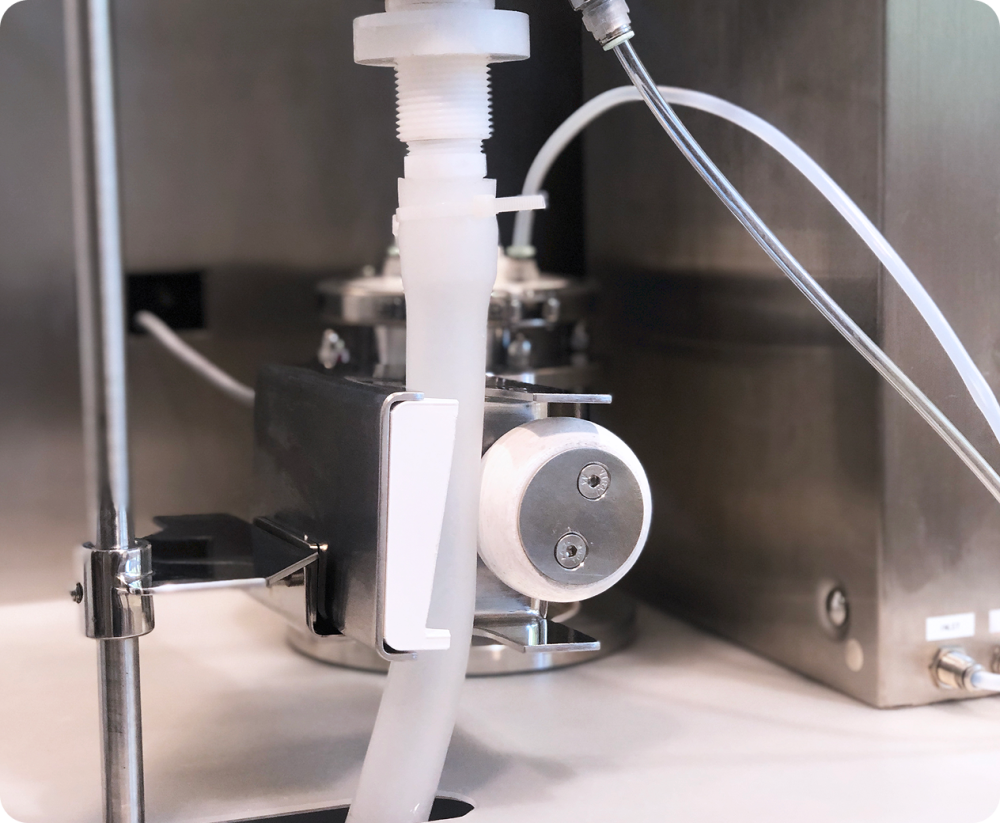

Developed for Our Systems
Now Available for Yours
Explore More Single-Use Solutions
DrM’s single-use technologies work together to support safe, sterile, and scalable bioprocessing from mixing to filtration and flow control.

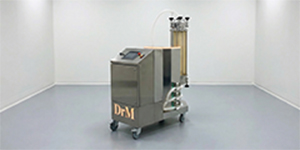

A multi cycle single-use filter that replaces depth filters and centrifuges, offering high product recovery and low turbidity.
